Trailer Equipment GuideWhat’s in this Freight Paper?

  1. Trailer dimensions used in both LTL & Truckload shipping.
  2. In-depth weight specifications from dry vans to flatbeds.
  3. Comprehensive list of available features and options available for all trailers.

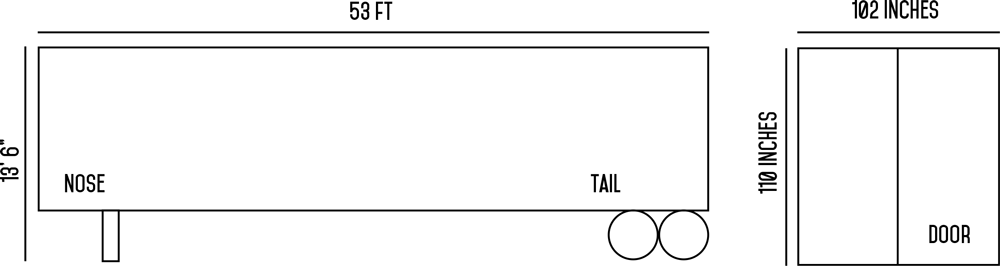

Dry Van

Dry Van

Basics

Length54 feet
Width102 inches
Height110 inches
Dock Height50 inches

Capacity

Max WeightApprox. 45,000 lbs.
Single Stack26 pallets
Double Stack52 pallets
Volume3,500 feet

Specialized Equipment

Heated*
Etrack*
Vented Trailer*
Food Grade*
*indicates limited availability

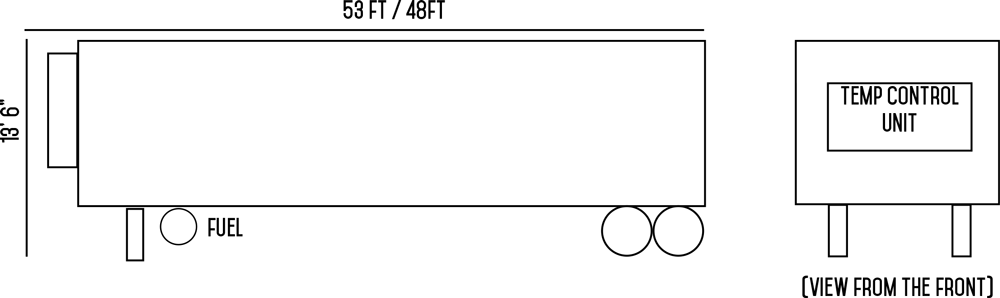

Reefer Truck

Reefer Truck

48′ Reefer

53′ Reefer

Overall Length 48′53′
Inside Length 46’6″51’6″
Overall Width 102″102″
Inside Width 97″ at Schuff 97.4″ at Liner97″ at Schuff 97.4″ at Liner
Overall Height 13’6″13’6″
Inside Height 103.5″103.5″
Door Opening 101.8″ H 98.3″ W101.8″ H 98.3″ W
Temp Range -20° to 70 °-20° to 70°
Dock Height 51.5″52.5″
Load Capacity Max44,000 lbs.43,500 lbs.

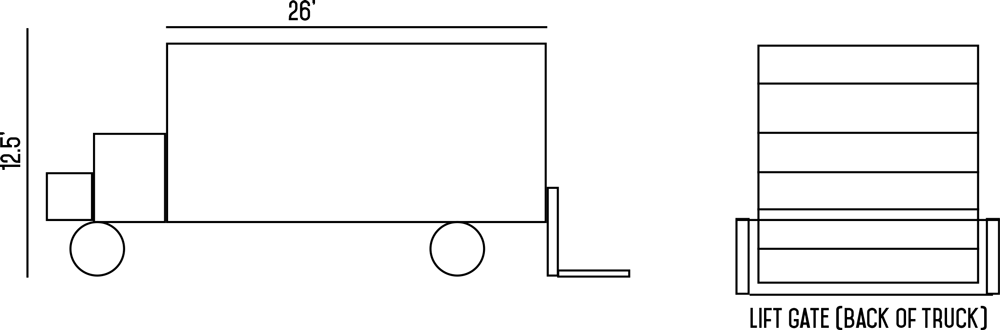

Straight Truck with Lift Gate

Straight Truck with Lift Gate

Basics

Length22-26 feet
Width96-102 inches
Height12.5 feet (26′)

Capacity (26′)

Max WeightApprox. 14,000 lbs.
Single Stack12 pallets
Double Stack24 pallets
Volume1,700 feet

Specialized Equipment

Etrack
Refrigeration
Trailers (Vented)
Liftgate

Flatbed Trailers

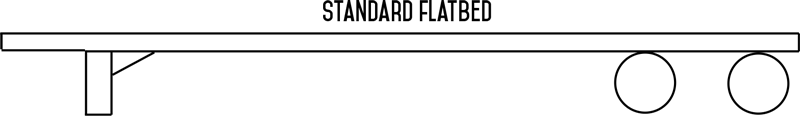

Standard Flatbed

Dimensions

Length48 feet
Width102 inches
Height102 inches

Max Weight

45,000 to 48,000 lbs.

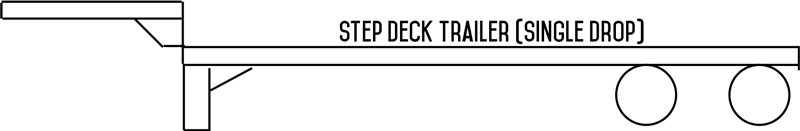

  Step Deck Trailer

Dimensions

Lower Deck Length37 feet
Top Deck Length11 feet
Width102 inches
Height10 feet (lower deck)

Max Weight

40,000 – 42,500 lbs.

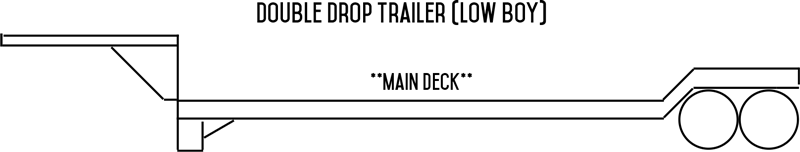

  Double Drop Trailer

Dimensions

Main Deck Length 28 feet
Main Deck Width102 inches
Main Deck Height11.5 feet

Max Weight

 38,000 – 40,000 lbs.

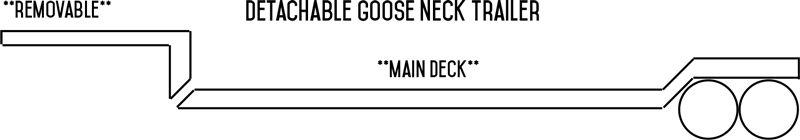

  Detachable Goose Neck Trailer

Dimensions

Main Deck Length 28 feet
Main Deck Width102 inches
Main Deck Height11.5 feet

Max Weight

38,000 – 40,000 lbs.
